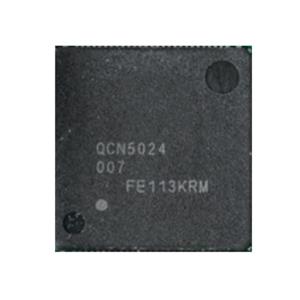

The Qualcomm QCN-5024-0-105DRQFN-MT-07-0 is a high-performance wireless communications component integrating advanced technology with a compact, efficient design. Its DRQFN package offers a low-profile, space-saving solution whilst incorporating an exposed thermal pad to enhance thermal management performance.

The component's high integration enables multiple functions within a single package, reducing external component requirements and simplifying overall system design. This integration proves particularly crucial in space-constrained, performance-critical applications.

Supporting multiple wireless communication standards, the QCN-5024-0-105DRQFN-MT-07-0 offers broad applicability to meet diverse application demands across consumer electronics, industrial automation, and automotive systems. Its outstanding performance characteristics ensure reliable operation and efficient data transmission capabilities, providing critical assurance for modern communication technologies.

QCN-5024-0-105DRQFN-MT-07-0 Specifications

Package Type: DRQFN (Dual Row Quad Flat No-lead)

Electrical Characteristics:

Operating Voltage Range: Typical operating voltage is 1.8V to 3.6V.

Power Consumption: Optimised for low-power operation, suitable for battery-powered and energy-efficient solutions.

Frequency Range: Supports specific frequency bands to meet wireless communication functional requirements.

Thermal Characteristics:

Thermal Resistance: Exposed thermal pad facilitates efficient heat dissipation, reducing thermal resistance and optimising thermal management.

Operating Temperature Range: Typical operating temperature: -40°C to 85°C, suitable for diverse environmental conditions.

Performance Parameters:

Data Rate: Capable of handling high data rates required for modern wireless communication applications.

Signal Integrity: Designed to ensure high-quality signal transmission, minimising noise and interference for reliable communication.

Pin Configuration:

Number of Pins: 100 pins.

Pin Functionality: Pins designated for power supply, ground, input/output, and communication functions.
