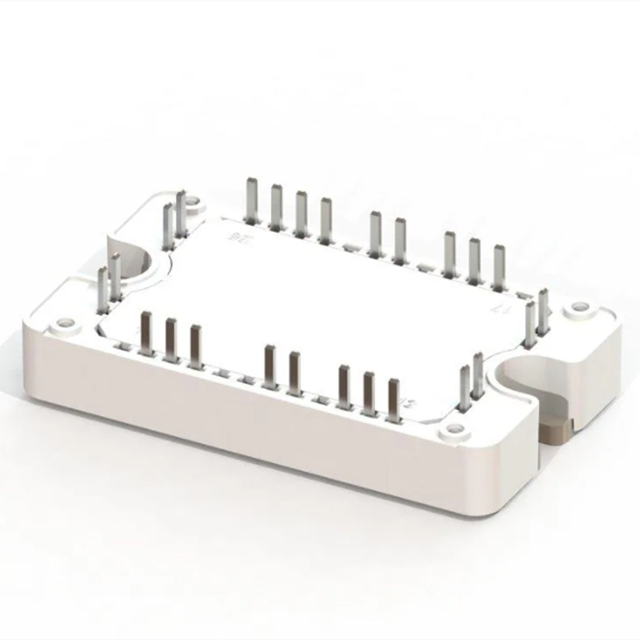

The APTM100H45FT3G is a power module launched by Microchip and belongs to the category of discrete semiconductor modules. This module adopts a full-bridge MOSFET architecture, featuring high isolation capability and flexible application adaptability. The operating junction temperature range is from -40°C to 150°C.

Core parameters

Configuration: Full bridge

Voltage: 1000V

Typical RDSon (mR) value: 450 mOhm

Current Tc=80°C: 14A

Silicon type: FREDFET

Packaging: SP3F

Performance characteristics

Outstanding performance in high-frequency operations

Install directly onto the heat sink (isolated package)

The thermal resistance to the shell is low

Solderable terminals for power and signals facilitate PCB installation

Low profile

Each leg can be easily connected in parallel to achieve a phase leg with twice the current capacity

Compliant with RoHS standards

Application fields of APTM100H45FT3G

Its typical applications include welding converters, switching power supplies and uninterruptible power supplies.
