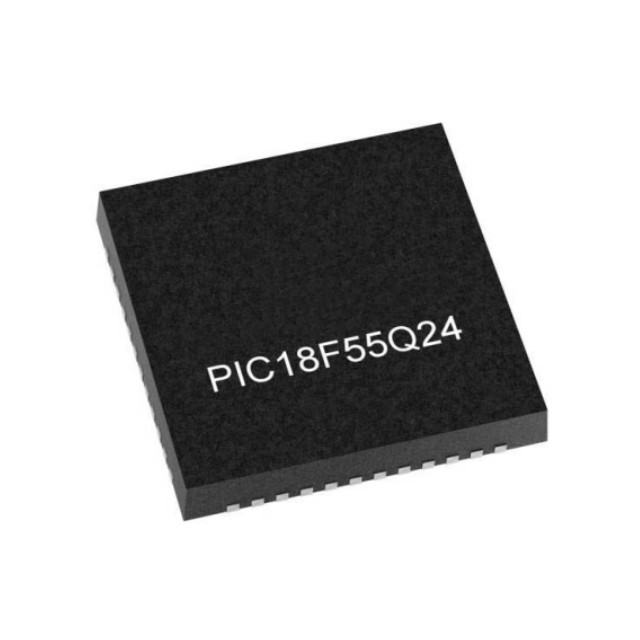

The PIC18F55Q24-I/6LX microcontrollers offer a range of features and functionality for sensor interface, real-time control and communication applications. The family introduces a programming and debugging interface disable module for enhanced code and data protection. It includes a multi-voltage I/O interface, a 10-bit analogue-to-digital converter with computation and an 8-bit signal routing port module for digital peripheral interconnections. The family of devices also features additional functions such as vector interrupt controllers, DMA functionality, various communication protocols (UART, SPI, I2C), and memory functions such as memory access partitions and device information areas.

Device Specifications

Series PIC® XLP™ 18K

Packaging: Tubes

Core Processor: PIC

Core Specification: 8-bit

Speed: 64MHz

Peripherals: Undervoltage Detect/Reset, DMA, HLVD, POR, PWM, WDT

Number of I/O: 43

Program memory capacity: 32KB (32K x 8)

Programme memory type: Flash

EEPROM size : 512 x 8

RAM Size: 2K x 8

Voltage - Supply (Vcc/Vdd): 1.8V ~ 5.5V

Data Converter: A/D 30x10b SAR; D/A 1x8b

Oscillator Type: External, Internal

Operating Temperature: -40°C ~ 85°C (TA)

Mounting Type: Surface Mount

Package/Shell: 48-VFQFN Exposed Pad

Supplier Device Package: 48-VQFN (6x6)
