The PIC16F15225-E/SL microcontrollers are available in a variety of packages for cost-sensitive sensor and real-time control applications. With a simplified feature set that includes a 10-bit analogue-to-digital converter (ADC). Other features include peripheral pin selection (PPS), digital communication peripherals, timers and waveform generators. Memory features include a memory access partition (MAP) to support data protection and bootloader applications. The Device Information Area (DIA) stores the Fixed Voltage Reference (FVR) offset to improve ADC accuracy.

Product Attributes

Core Processor: PIC

Core specification: 8-bit

Speed: 32MHz

Connectivity: I²C, LINbus, SPI, UART/USART

Peripherals: Undervoltage Detect/Reset, POR, PWM, WDT

Number of I/O: 11

Program memory capacity: 14KB (8K x 14)

Program memory type: Flash

RAM Size: 1K x 8

Voltage - Supply (Vcc/Vdd): 1.8V ~ 5.5V

Data Converter: A/D 9/2x10b

Oscillator Type: Internal

Operating Temperature: -40°C ~ 125°C (TA)

Mounting Type: Surface Mount

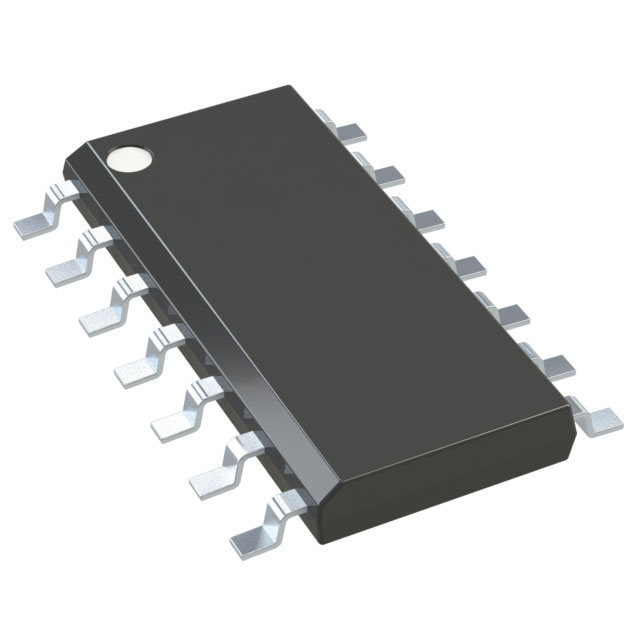

Package/Case: 14-SOIC (0.154", 3.90mm wide)

Supplier Device Package: 14-SOIC
