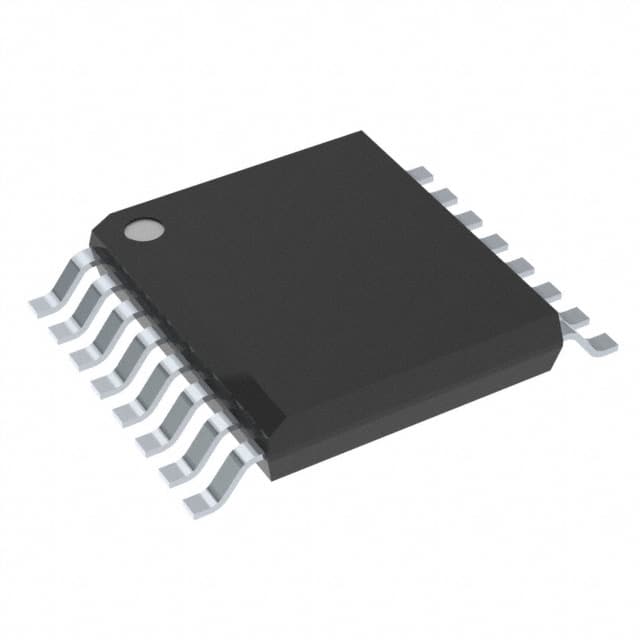

The ISO7041FDBQR device is an ultra-low power multi-channel digital isolator that can be used to isolate CMOS or LVCMOS digital I/O. The logical input and output buffers of each isolated channel are isolated by a dual-capacitive silicon dioxide (SiO2) insulated gate. The innovative edge-based architecture combined with the on-off key-based modulation scheme enables the isolator to have very low power consumption while complying with the 3000VRMS isolation rating specified in the UL1577.

Product specification

Technology: capacitive coupling

Type: SPI

Isolated power supply: None

Number of channels: 4

Input - Side 1/ side 2:3/1

Channel type: Unidirectional

Voltage-isolation: 3000Vrms

Common mode transient immunity (min) : 50kV/µs

Data rate: 2Mbps

Propagation delay tpLH/tpHL (maximum) : 165ns, 165ns

Pulse width distortion (Max) : 10ns

Rise/fall time (typical) : 5ns, 5ns (Max)

Voltage - power supply: 1.71V ~ 1.89V, 2.25V ~ 5.5V

Operating temperature: -55°C ~ 125°C

Mounting type: Surface mount type

Package/housing: 16-SSOP (0.154", 3.90mm wide)

Supplier device package: 16-SSOP

Basic product number: ISO7041
